Connecting a TV

Choose your connection

Check the audio outputs on your TV and choose the type of connection you want to make from the available connections:

Analogue stereo audio—A connection that consists of a left (white) and a right (red) channel

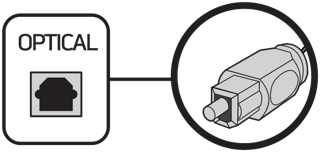

Digital optical audio—A connection that passes digital data in the form of pulsating light through a fibre optic cable

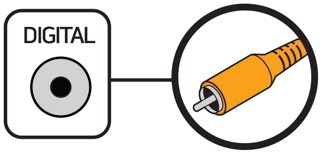

Digital coaxial audio—A digital audio connection that passes digital data through a 75-ohm coaxial cable

Connect your TV

To connect the TV to your system, follow these steps:

On your TV, insert one end of the selected audio cable into the TV's corresponding audio output jack

Note: If using an optical cable, make sure the cable's protective plastic connector caps have been removed before connecting

On the Bose® system, insert the other end of the audio cable into the corresponding input jack
